Corrected an issue that caused various standard steel connections to have, by default, an empty Design module field in Joint Design, in the connection properties dialog. Fixed an issue with the quick connection - Base Plate settings dialog that would not correctly show the Anchor length field. Fixed a crash that could occur when using the numbering command and editing xrefs.
Fixed an issue with the ANZ Bridging dialog that could not be properly used when setting a high display DPI. The improvements include automatic scaling for dialogs to correctly show text and buttons.

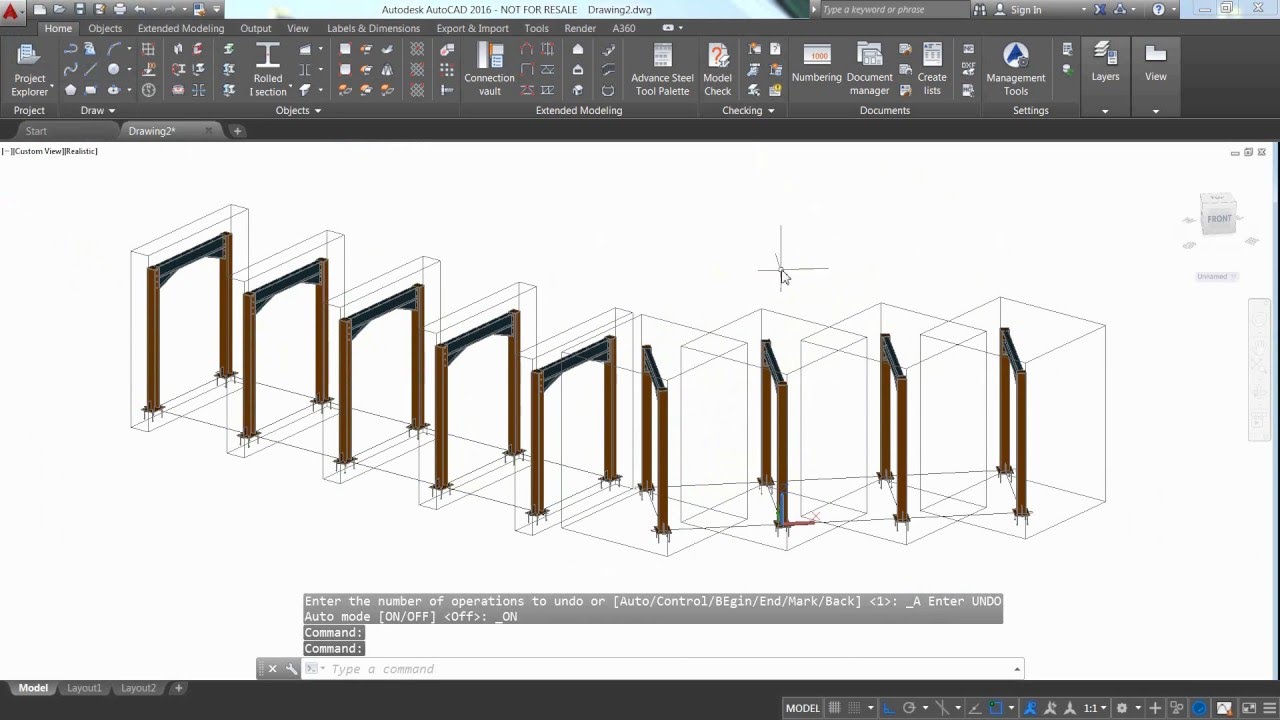

Improved High DPI support for the Advance Steel User Interface: This version of Advance Steel includes a set of user interface fixes to the overall experience when using a high DPI setting, with a high-resolution monitor (2K, 4K, etc.). The macro incorporates a library which gives the possibility to save all configurations and types of structures for later usage.ĭesigned to save you considerable time, the functionalities of the Steel Structure Designer are able to run across multiple platforms including Autodesk® Advance Steel (as part of PowerPack for Advance Steel) and GRAITEC Advance Design, enabling flexible and intelligent BIM workflows. No matter the type of structure, Factory or Building, the Steel Structure Designer helps you to define the geometry of the structure (rows, bays, levels), then the portal frames that will support the roof, intermediate columns, side and roof bracings, railing and purlins, including steel panels, or cladding, that cover the entire structure.
The Steel Structure Designer incorporates an extensive range of building definitions and tools enabling users to configure complete structures in seconds, from standard building shapes used in industry (platforms, steel halls), to more complex models, such as office buildings or structures with curved roofs, in seconds. Need to go further? Add PowerPack for Advance Steelīuild your 3D frame and store it in the library, in the blink of an eye
